OMAX 40-2500X LED Digital Trinocular Lab Microscope with 5MP Camera - Includes Blank Slides, Covers & Lens Paper - Ideal for Biology, Research & Education
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
88905207
Description

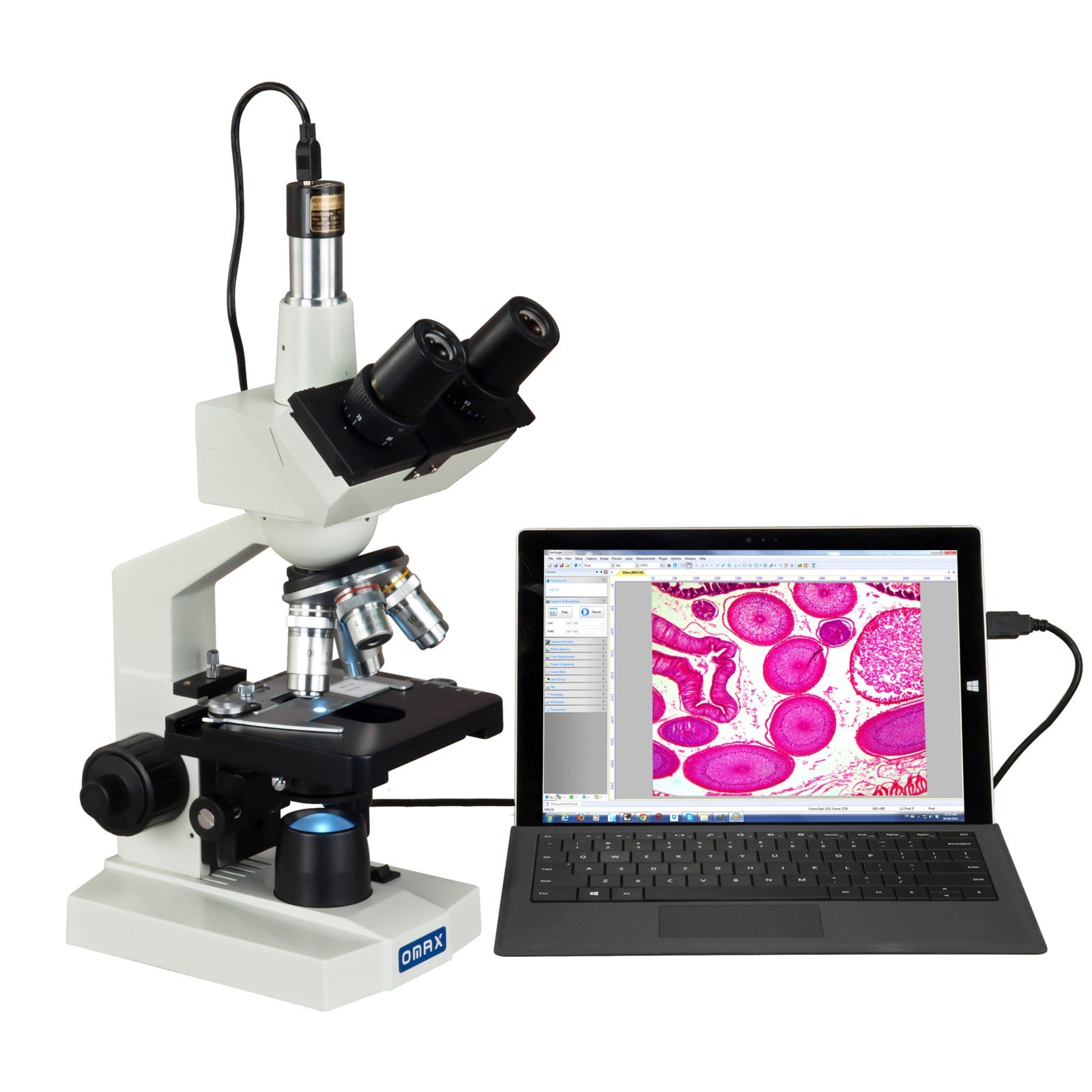

This is a digital trinocular biological compound microscope that includes a digital imaging system. The trinocular microscopy comes with a 45° inclined 360° swiveling trinocular sliding viewing head, two pairs of widefield eyepieces, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser, variable intensity LED transmitted illumination, 100 blank glass slides, 100 glass cover slips, 100 sheets of len cleaning paper and microscope book, "The World of The Microscope". It offers six levels of magnification power: 40X-100X-250X-400X-1000X-2500X. The 5MP USB digital imaging system captures still microscope images and live video on computer. The included software compatible with Windows, and Mac OS X (see version information below). The user-friendly editing and processing software for Windows offers advanced features including stitching, EDF (Extended Depth of Focus), video recording and measurement functions. The software allows you to make notes, shapes, and watermarks with ease. You can analyze, present, and share images of samples and specimens using the software. This type of digital compound microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.
Features
Total magnification 40X-100X-250X-400X-1000X-2500X; Eyepieces wide field WF10X and WF25X; Objective achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head 45 degrees inclined 360 degrees swiveling trinocular; Sliding adjustable interpupillary distance 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Ocular diopter adjustable on both eyetubes; Nosepiece revolving quadruple
Total magnification 40X-100X-250X-400X-1000X-2500X; Eyepieces wide field WF10X and WF25X; Objective achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head 45 degrees inclined 360 degrees swiveling trinocular; Sliding adjustable interpupillary distance 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Ocular diopter adjustable on both eyetubes; Nosepiece revolving quadruple
Total magnification 40X-100X-250X-400X-1000X-2500X; Eyepieces wide field WF10X and WF25X; Objective achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head 45 degrees inclined 360 degrees swiveling trinocular; Sliding adjustable interpupillary distance 2-3/16inch ~ 2-15/16inch(55mm ~ 75mm); Ocular diopter adjustable on both eyetubes; Nosepiece revolving quadruple
Stage mechanical double layer size 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range) 2-13/16inch x 1-3/16inch (70mm x 30mm); Condenser and diaphragm NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator LED light, intensity adjustable; Focus adjustment Coaxial coarse and fine knobs on both sides

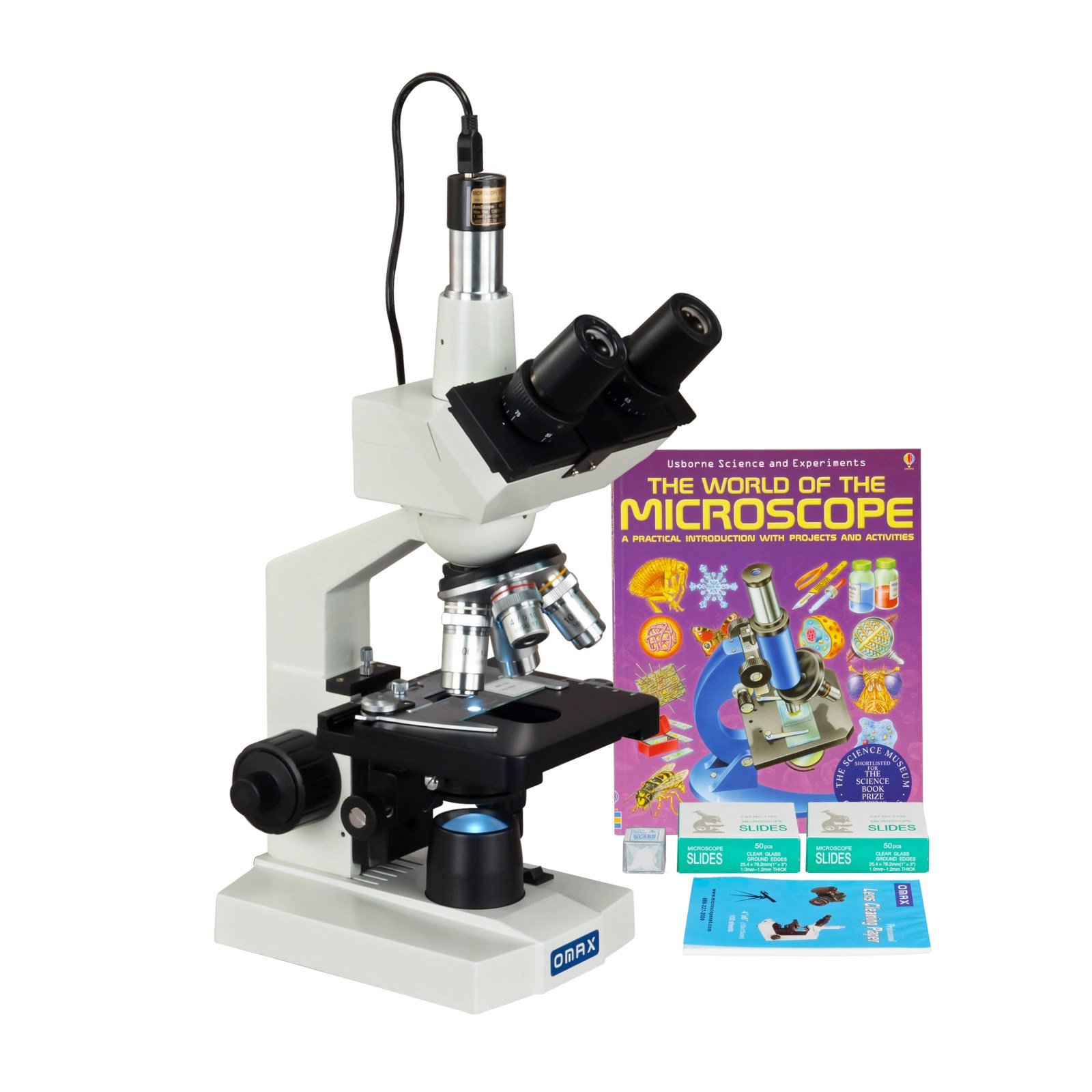

All metal mechanical components; 100-piece blank glass slides with 100-piece cover slips and 100-sheet lens cleaning paper included; Microscope book, The World of The Microscope included; Power supply AC/DC adapter, 100V-240V (UL approved)
Digital camera - True color 2592x1944 pixels (5MP) - Frame speed 2fps at 2592x1944, 3fps at 2048x1536, 5fps at 1600x1200, 7.5fps at 1280x1024 - Software compatible with Windows and Mac OS X operating systems - Offers capturing still images, stitching, EDF, video recording and measurement functions - USB cable included
5-year warranty against manufacturing defects
